26AWG超真空同轴电缆 50Ω UHV Kapton Insulated Coaxial Cable
Cable Specification & Technical Data
电缆技术规范
PI绝缘同轴电缆26AWG 50Ω
26AWG,50 Ohm PI Insulated Coaxial Cable

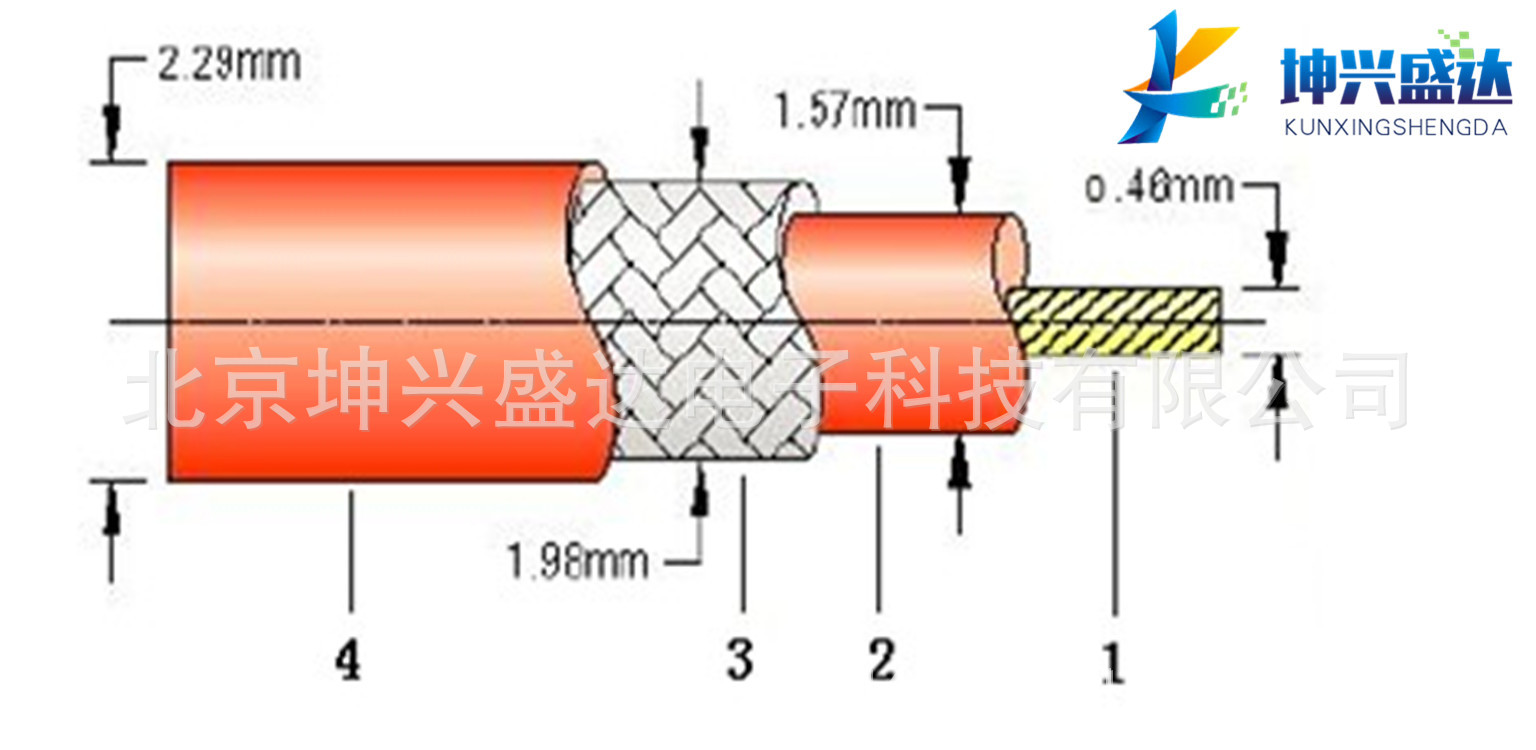

结构参数Construction | ||||||||
材料 Material | 标称直径Diameter(mm) | |||||||
1.内导体 Inner Conductor | 镀银铜绞线Silver Plated Copper Standed | 7/0.16 | ||||||
2.绝缘体 Dielectric | PI薄膜 Polyimide Film | 1.57±0.05 | ||||||
3.外导体 Outer Conductor | 镀银铜编织Silver Plated Copper Braid | 2.00 | ||||||
4.护套Jacket | PI薄膜 Polyimide Film | 2.29±0.05 | ||||||
电性能参数 Electrical Characteristics | ||||||||
阻抗 Impedance(Ohm) | 50±3 | |||||||
电容 Capacitance(Pf/m) | 105 | |||||||
衰减 Attenuation(dB/100m,100MHz) | 26.7 | |||||||
额定电压 Voltage Rating(KVDC) | 10 | |||||||
额定电流 Current Rating(A) | 3 | |||||||
导体电阻Con.Resistance(Ω/km 20℃) | <159 | |||||||
机械性能参数 Mechanical Characteristics | ||||||||
温度范围 Operating Temp.(℃) | -200~+250 | |||||||
最小弯曲半径 Minimum Bend Radius(mm) | 14 | |||||||
RoHS符合性 RoHS Compliant | RoHS |
备注:下单请来电询价。
