Sanitary Ball Valve 卫生级球阀
【产品名称】:不锈钢快装球阀、卫生级快装球阀、卡箍式球阀、食品级球阀、卫生级球阀、卡口快装球阀。
【规格及尺寸】:DN10-DN150
【压力范围】:≤0.6-1.0Mpa下使用
【温度】≤200度下使用
【密封】 四氟特氟龙密封垫圈,英文名称PTFE
【应用领域】:适用于食品工业流体管道、纯净水、啤酒、制药厂、生物工程流体管道等生产线。
【优点】:卡箍连接方便快捷、使用方便、卫生洁净符合国家GMP标准,使用寿命长,零部件更换容易简单等优点。
【管径】:Φ12.7~Φ159mm
【驱动方式】:手动
【属性】:卫生级阀门
【品牌】:MY DREAM
【产地】:温州
【工艺】:铸造、数控机加工、抛光
【标准】:GB,3A,ISO,DIN
【通用】:所有标准卡盘统一标准通用尺寸
[Product Name] Stainless steel quick-loading ball valve, sanitary fast-loading ball valve, clamp-type ball valve, food-grade ball valve, sanitary-grade ball valve, clamp-type ball valve.
[Specification and size]: DN10-DN150
[Pressure range]: <0.6-1.0 Mpa Use at
[temperature] below 200 degrees
Teflon gasket, English name PTFE
[Application field]: It is suitable for the production lines of fluid pipeline, pure water, beer, pharmaceutical factory and bioengineering fluid pipeline in food industry.
[Advantages]: The clamp connection is convenient, fast, easy to use, hygienic and clean in line with the national GMP standard, long service life, easy to replace parts and other advantages.
[Diameter] 12.7~159
[Driving mode]: Manual
[Attribute]: Hygienic Valve
Brand: MY DREAM
[Origin] Wenzhou CHINA
[Technology]: Casting, CNC Machining and Polishing
[Standard] GB, 3A, ISO, DIN
[Universal] Uniform standard size for all standard chucks

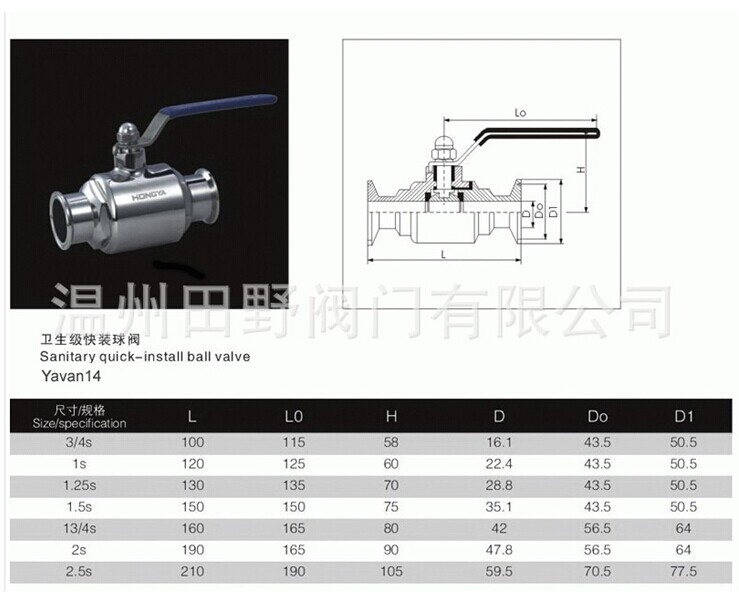

【不锈钢卫生级快装球阀尺寸参考数据】

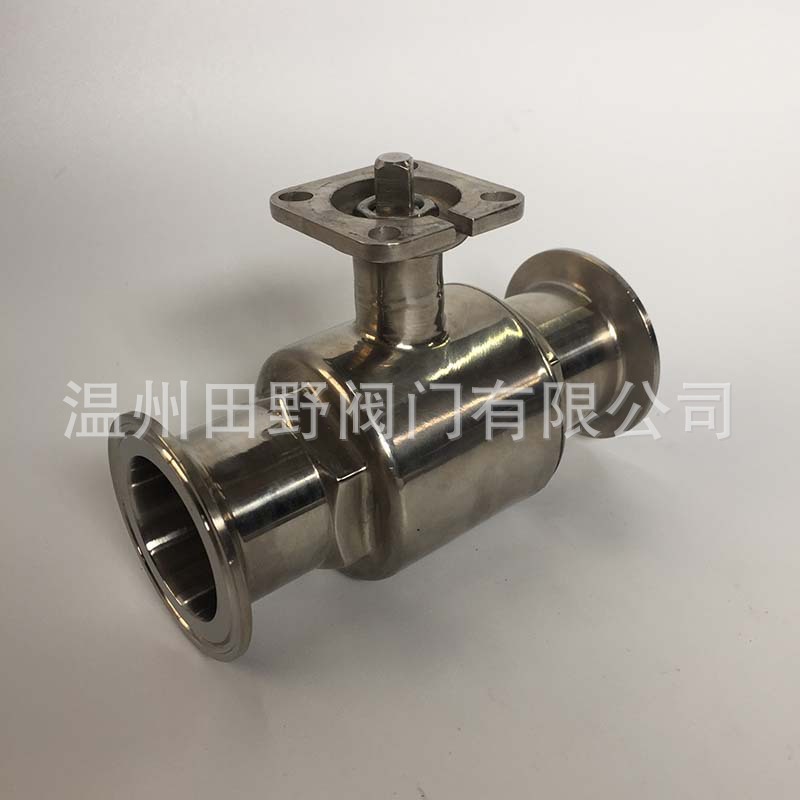

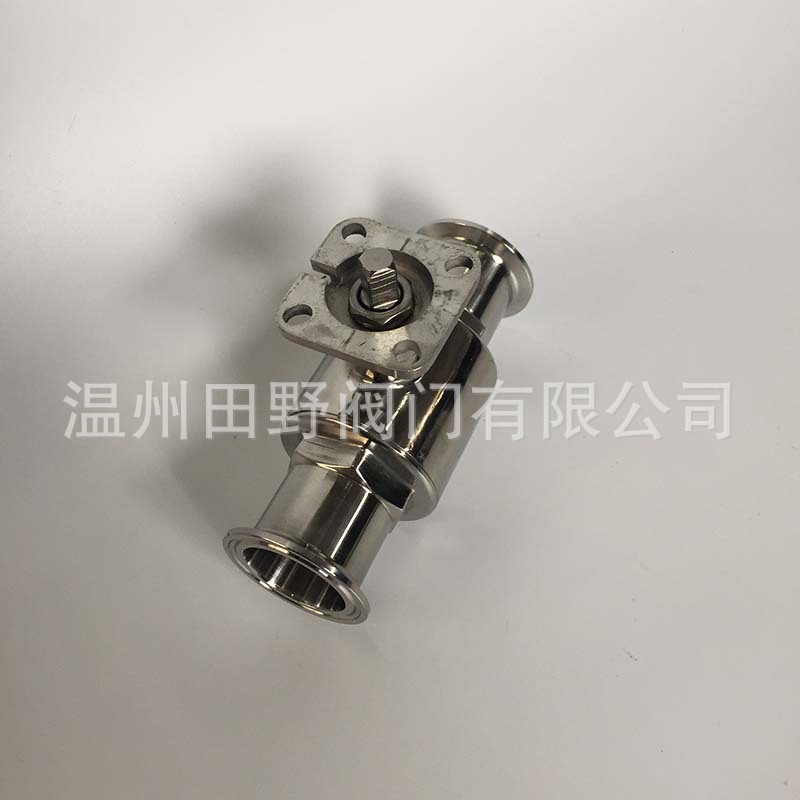

扩展型快装球阀
高平台球阀,可加装自动化装置气缸,或电动头
