应用
|
（钻, 铣, 磨, 雕刻）机床电主轴 |
Applications |
Drilling, Milling, Grinding, Engraving |
|
|

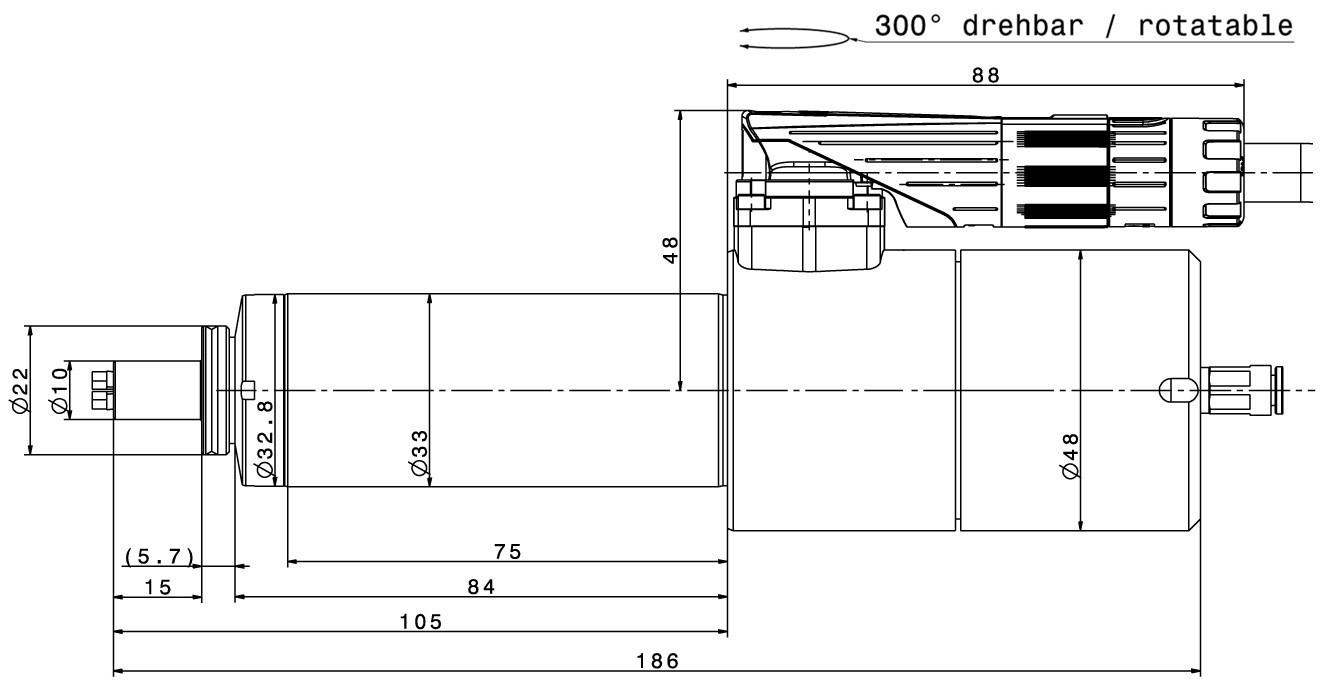

外壳夹装尺寸 |
33 mm |
Clamping diameter |
33 mm |
|
马达类型 |
3相异步高速电机 |
Motor system |
3 Phase asynchronous motor |
|
转速范围 |
6.000 – 80.000 min-1 |
Speed range |
6,000 – 80,000 rpm |
|
额定电压 |
max. 60 V |
Voltage |
max. 60 V |
|
电流 |
max. 8 A |
Current |
max. 8 A |
|
扭矩 |
max. 8,4 Ncm |
Torque |
max. 8.4 Ncm |
|
频率 |
100 - 1.333 Hz |
Frequency |
100 - 1,333 Hz |
|
功率 |
max. 500 W |
Output power |
max. 500 W |
|
重量 |
1,0 kg |
Weight |
1.0 kg |
|
轴承 |
3 x陶瓷轴承, 油脂润滑 |
Bearing system |
3 x Hybrid, lifetime lubrication |
|
防护等级 |
IP 55/57 (加密封气) |
Protection category |
IP 55/57 (with sealing air + optional
accessory: sealing cap 2001 2618)
|
|
电机保护 |
KTY |
Motor protection |
KTY |
|
安装位置 |
|
Working position |
|
|
负载方向 |
axial + radial |
Load direction |
axial + radial |
|
锥面跳动 |
≤ 1 μm |
Run-out (taper) |
≤ 1 μm |
|
刀具夹持范围 |
至 Ø 4,0 mm |
Chuck clamping range |
up to Ø 4.0 mm |
|
换刀方式 |
压缩气 5 - 6 bar (管内经 Ø 4 mm) |
Tool change |
pneumatic 5 - 6 bar (hose Ø 4 mm) |
|
冷却系统 |
外夹具冷却 |
Cooling system |
Cooling via clamping bracket |
| 防水防尘措施 | 密封气 27 Nl/min (管内经 Ø 4 mm) |
Protected against dirt |
Sealing air 27 l/min@STP
(hose outer Ø 4 mm)
|
|
外壳材料 |
不锈钢 |
Housing material |
Stainless steel |
|
推荐变频器 |
e@syDrive® 4310(IP00)*, 4320(IP00)*,
4425*, 4426,TV4503*,TV4504,TV4506
|
Inverter recommendation |
e@syDrive® 4310(IP00)*, 4320(IP00)*,
4425*, 4426,TV4503*,TV4504,TV4506
|
| 特性 | 利用 6 bar 压缩气进行锥面清洁 | Highlights | Taper cleaning at 6 bar |
|
|
保留修改权 |
Subject to change without notice |
