4033-kLFC 陶瓷插芯（内径）内圆磨床专用高速电主轴
4060E-KGS 陶瓷插芯（外径）外圆磨床专用高速电主轴
| 应用 | （钻, 铣, 磨, 雕刻）机床电主轴 | Applications | Drilling, Milling, Grinding, Engraving |
外壳夹装尺寸 | 60 mm | Clamping diameter | 60 mm |
马达类型 | 3相异步高速电机 | Motor system | 3 Phase asynchronous motor |
转速范 | 3,000 – 24,000 min-1 | Speed range | 3,000 - 24,000 rpm |
额定电压 | 220 V | Voltage | 220 V |
电流 | 最大 14 A | Current | max. 14 A |

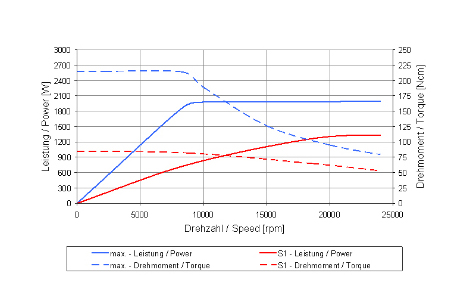

扭矩 | 最大 215 Ncm | Torque | max. 215 Ncm |
频率 | 50 - 400 Hz | Frequency | 50 - 400 Hz |
功率 | 最大 2.000 W | Output power | max. 2,000 W |
重量 | 3.5 kg | Weight | 3.5 kg |
轴承 | 3 x 钢球轴承, 油脂润滑 | Bearing system | 3 x Steel, lifetime lubrication |
防护等级 | IP 54/57 | Protection category | IP 54/57 |
电机保护 | PTC - 130 °C | Motor protection | PTC - 130°C |
安装位置 | Working position | ||
负载方向 | 轴向 + 径向 | Load direction | axial + radial |
锥面跳动 | 通常 1 µm | Run-out (taper) | [ 1 µm |
刀具夹持范围 | Ø 0.5 – 7.0 mm (ER 11) | Chuck clamping range | Ø 0.5 - 7.0 mm (ER 11) |
换刀方式 | 1 开口扳手 (SW 13) | Tool change | 2 Hex key +Hook wrench |
冷却系统 | 外夹具冷却 | Cooling system | Cooling via clamping bracket |
防水防尘措施 | 密封气0.8–1.0 bar(管径Ø 内/外 4/6 mm) | Protected against dirt | Sealing air 0.8 - 1.0 bar |
外壳材料 | 不锈钢 | Housing material | Stainless steel |
推荐变频器 | e@syDrive® 4438, TV 4538, EMERSON SKCD200220 | Inverter recommendation | e@syDrive® 4438, TV 4538, EMERSON SKCD200220 |
不锈钢 | Subject to change without notice |
